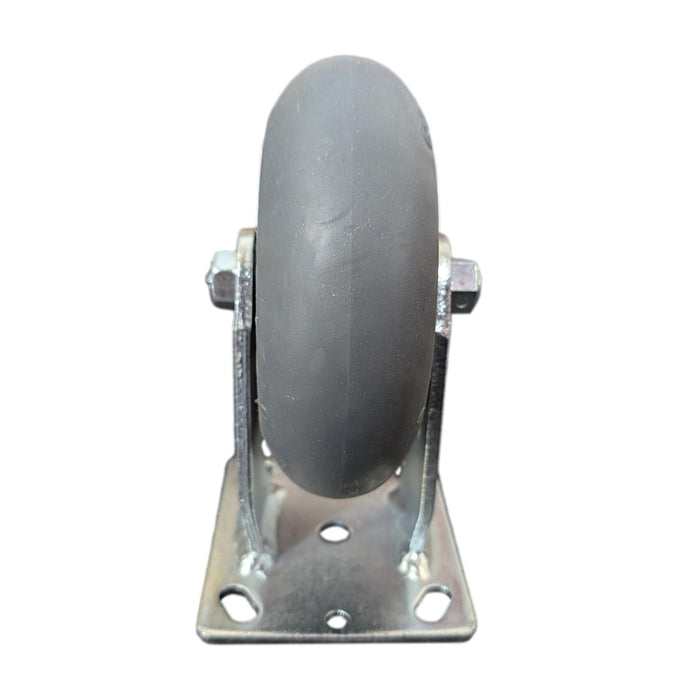

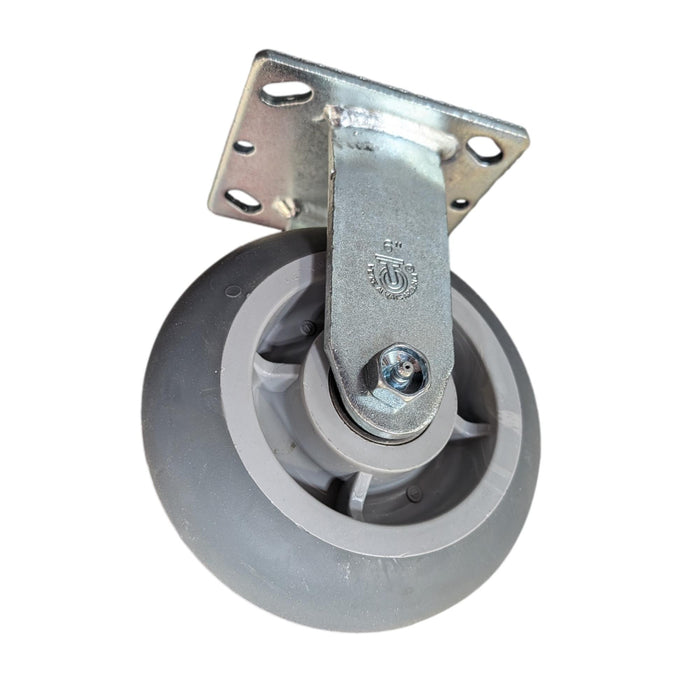

6" x 2" Thermo-Pro Wheel Rigid Caster - 500 lbs. Capacity
6" x 2" Thermo-Pro Wheel Rigid Caster - 500 lbs. Capacity
Product Overview
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber This caster is listed with wheel diameter 6", tread width 2", load capacity 500 Lbs., tread type Non-Marking Thermoplastic Rubber, and bearing type Ball Bearing.
Key Features
- Load Capacity: 500 Lbs.
- Wheel Diameter: 6"
- Tread Width: 2"
- Tread: Non-Marking Thermoplastic Rubber
- Bearing: Ball Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 500 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Non-Marking Thermoplastic Rubber wheel or tread
Not Ideal For
Not ideal when the load exceeds 500 Lbs, the equipment requires a wheel other than 6" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 500 Lbs. |
| Wheel Diameter | 6" |
| Tread Width | 2" |
| Tread Type | Non-Marking Thermoplastic Rubber |
| Core Type | Solid Polyolefin Core |
| Bearing Type | Ball Bearing |
| Wheel Color | Gray on Gray |
| Overall Height | 7" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore A 75 (+/-5) |
| Temperature Range | -20° F to 180° F |
| Model / MPN | 28TP60JX6017YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -20° F to 180° F.
