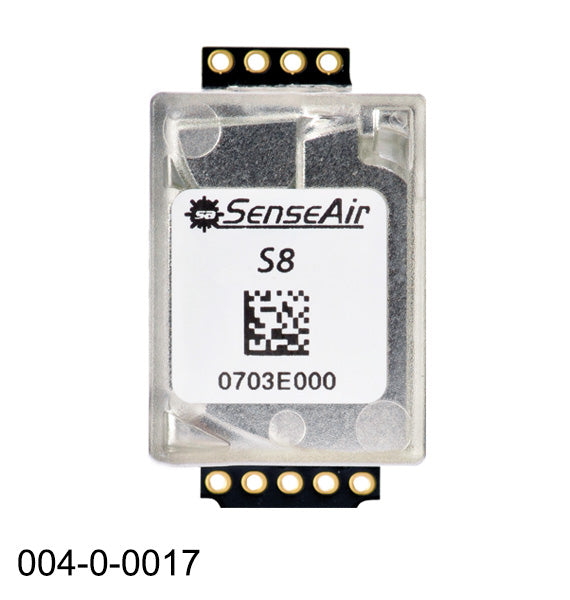

004-0-0017 S8 Alarm 5% CO2 Sensor
004-0-0017 S8 Alarm 5% CO2 Sensor
The S8 5% Alarm CO2 Sensor (004-0-0017) is designed to act like a safety switch for alarm applications where CO2 leak detection around tanks or cylinders of compressed CO2 gas is required. It comes with Automatic Background Calibration (ABC) turned on.
Thanks to a new optical path design, the S8 can accurately measure carbon dioxide levels up to 5%, yet it has less than a 30x20x10mm footprint and runs on only 30mA.
This sensor is designed for commercial applications. It provides simple communication via UART which lets you change the measurement period and control the ABC period in real time. Background and zero-gas calibrations are also implemented in a simple manner.
Features
- Low Power, Small Footprint Design
- Automatic Background Calibration
- Industry-Standard UART Communication
Models
- S8 Alarm 0-5% CO2 Sensor (004-0-0017) - pinless design for integration into high-volume OEM products. ABC on.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Method: Diffusion
- Measurement Range: 0-5% (0-50,000ppm)
- Response time: 90% at 2 minutes
- Rate of Measurement: 0.5 Hz (every 2 seconds)
- Accuracy: ± 200ppm ± 10% of measured value
- Available Output: analog
- Communication Options: UART Modbus
- Sensor Life Expectancy: > 15 years
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check on startup
Electrical / Mechanical
- Dimensions: 32.7 × 19.7 × 8 mm (LxWxH) < 8 grams.
- Power Input: 4.5-5.25 VDC
- Max Current: 300 mA
- Power Consumption: 300mA peak, 30mA average
Warranty
- 90 days - See CO2Meter Terms and Conditions.
S8 5% Datasheet (pdf)
S8 5% Sensor Manual (pdf)
Modbus Communication Manual (pdf)
Connecting to Raspberry Pi via UART (pdf)
Raspberry Pi Sample Code (ZIP)
Connecting to TI CC3200 WIFI via UART (pdf)
Senseair ISO Certification (pdf)
